Hydrogen Purification (PSA)

High purity hydrogen recovery from steam methane reformer off gas, chlor alkali by product gas, or electrolyser product using a layered adsorbent bed pressure swing adsorption cycle.

Find My Solution View Products & Systems
The Challenge
Refinery and chemical operators face high hydrogen demand and high hydrogen prices; raw hydrogen streams from SMR, chlor alkali, or electrolyser carry CO, CO₂, CH₄, N₂, and water that must be removed before the hydrogen is used in hydrotreating, hydrocracking, fuel cell, or mobility applications.
Quick Answer

Hydrogen PSA purification uses a layered adsorbent bed (activated carbon, 13X molecular sieve, CMS polishing) in a multi vessel pressure swing adsorption cycle to recover hydrogen at 99.9 to 99.999 percent purity from impurity laden feed gas. Recovery efficiency reaches 80 to 90 percent with pressure equalisation steps.

Hydrogen Purification (PSA)

The Hydrogen Purity and Recovery Trade

Hydrogen is consumed in vast quantities across refining (hydrotreating, hydrocracking), petrochemicals (ammonia, methanol synthesis), and increasingly in mobility (fuel cell vehicles, hydrogen refuelling stations). The raw hydrogen sources, steam methane reformer (SMR) off gas, chlor alkali by product, naphtha reforming off gas, and now green hydrogen from PEM and alkaline electrolysers, all carry impurities that must be removed before use. The SorbiTech hydrogen PSA train recovers high purity hydrogen at the operator contracted specification, with recovery efficiency that determines the project economics.

Layered Adsorbent Bed Architecture

The layered bed is the deciding feature. Activated carbon at the inlet captures carbon dioxide and heavier hydrocarbons; 13X molecular sieve in the middle layer holds carbon monoxide and residual water; a polishing layer of carbon molecular sieve captures the trace methane and nitrogen. The combined train delivers hydrogen at ISO 14687 Grade D fuel cell specification: CO below 0.2 ppm, total sulphur below 0.004 ppm.

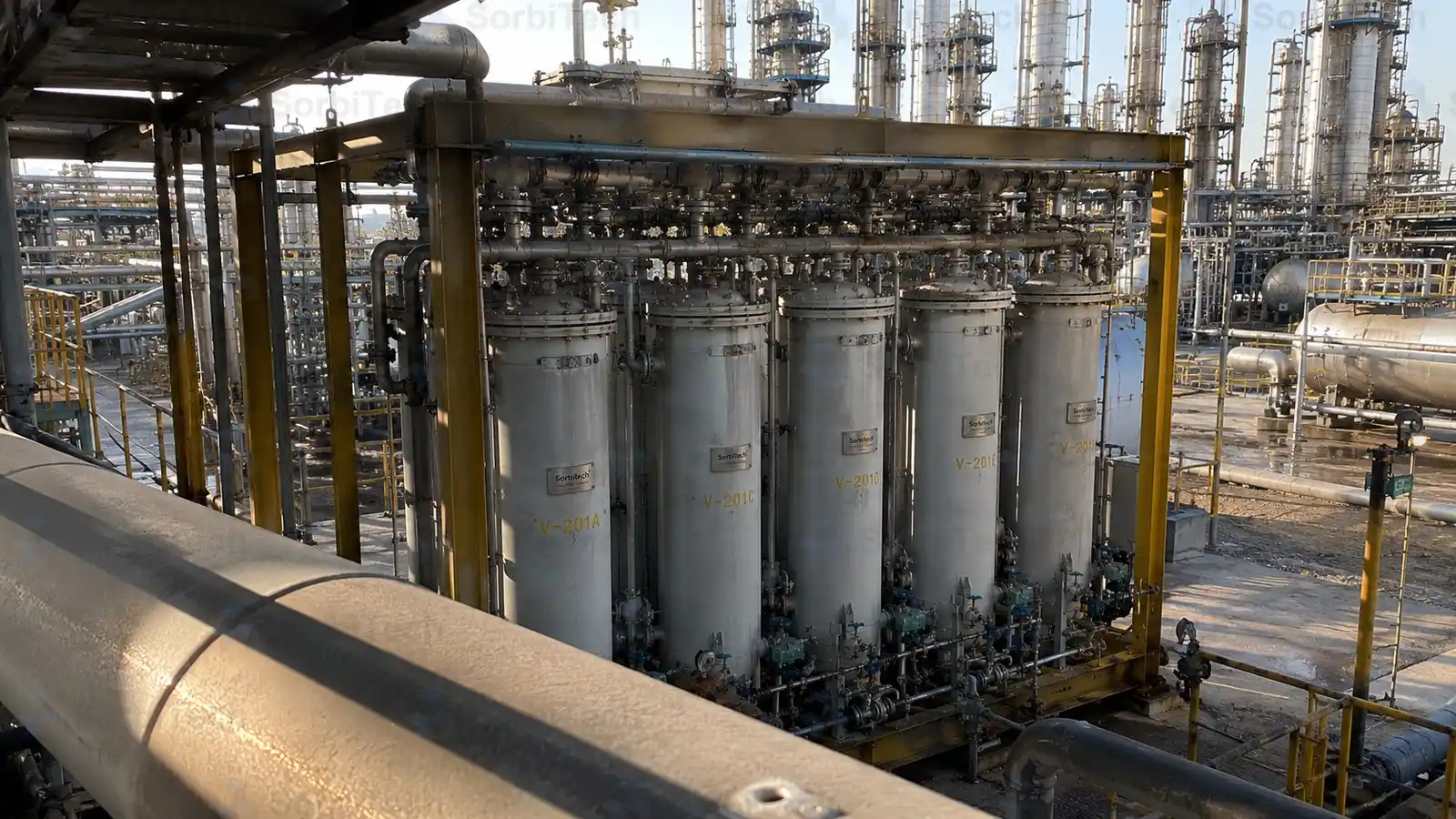

Hydrogen Purification (PSA) process equipment

Pressure Equalisation Lifts Recovery

A four to twelve vessel PSA train running with pressure equalisation recovers 80 to 90 percent of the hydrogen contained in the feed. Without equalisation a simple two vessel PSA recovers only 60 to 70 percent. SorbiTech matches the vessel count to the operator hydrogen value and the available footprint; higher hydrogen value justifies more vessels and the corresponding recovery uplift.

Delivery as a Turnkey Package

SorbiTech delivers the duty as a turnkey hydrogen PSA purification package engineered by SorbiTech, with the layered adsorbent charge and the civil and electrical execution. Sector coverage is petrochemicals and refining and industrial gas.

Selection Guidance

Use activated carbon at the inlet for CO₂ and heavy hydrocarbons, 13X middle layer for CO and residual water, carbon molecular sieve polishing layer for trace methane and nitrogen. Match the vessel count to the contracted recovery efficiency.

How SorbiTech Solves It

A Specified, Verified Solution

Define the duty

We capture your process conditions: flow, composition, pressure, temperature, and the target outlet specification.

Select media & configuration

Our engineers recommend the adsorbent grade and system type that meet the duty with margin.

Size & engineer

Bed sizing, vessel design, and cycle parameters are engineered to your case and documented for approval.

Commission & verify

We support loading, start up, and performance verification against the guarantee.
