Carbon Molecular Sieve CMS 350KT
Carbon Molecular Sieve

Carbon Molecular Sieve CMS 350KT

Rapid adsorption carbon molecular sieve. 40 to 90 second cycle at 7 to 10 barg, up to 99.99 percent N2, 1.0 to 2.2 mm pellets, low dust formation.

Moisture at supply below 1.0 percent, feed must reach ISO 8573 class 1.4.1 Water Capacity (%)
0.60 to 0.66 Bulk Density (g/ml)
1.0 mm to 2.2 mm cylindrical pellet Form / Size
Approx 1100 (BET) Surface Area (m²/g)
Quick Answer

CMS 350KT is the SorbiTech rapid adsorption carbon molecular sieve for industrial nitrogen PSA up to 99.99 percent. Sub 10 Angstrom pore control under cycle pressure, 40 to 90 second cycle, 7 to 10 barg adsorption, moisture below 1.0 percent at supply. Manufactured by SorbiTech as 1.0 to 2.2 mm cylindrical pellets with low dust formation.

Qualification Data
Documents
Certifications

ISO 9001:2015

Test Standards

Dynamic O2/N2 separation factor and PSA cycle test

Manufacturing

SorbiTech Group

Lot Traceability

COA per lot, dust formation and pellet integrity verified

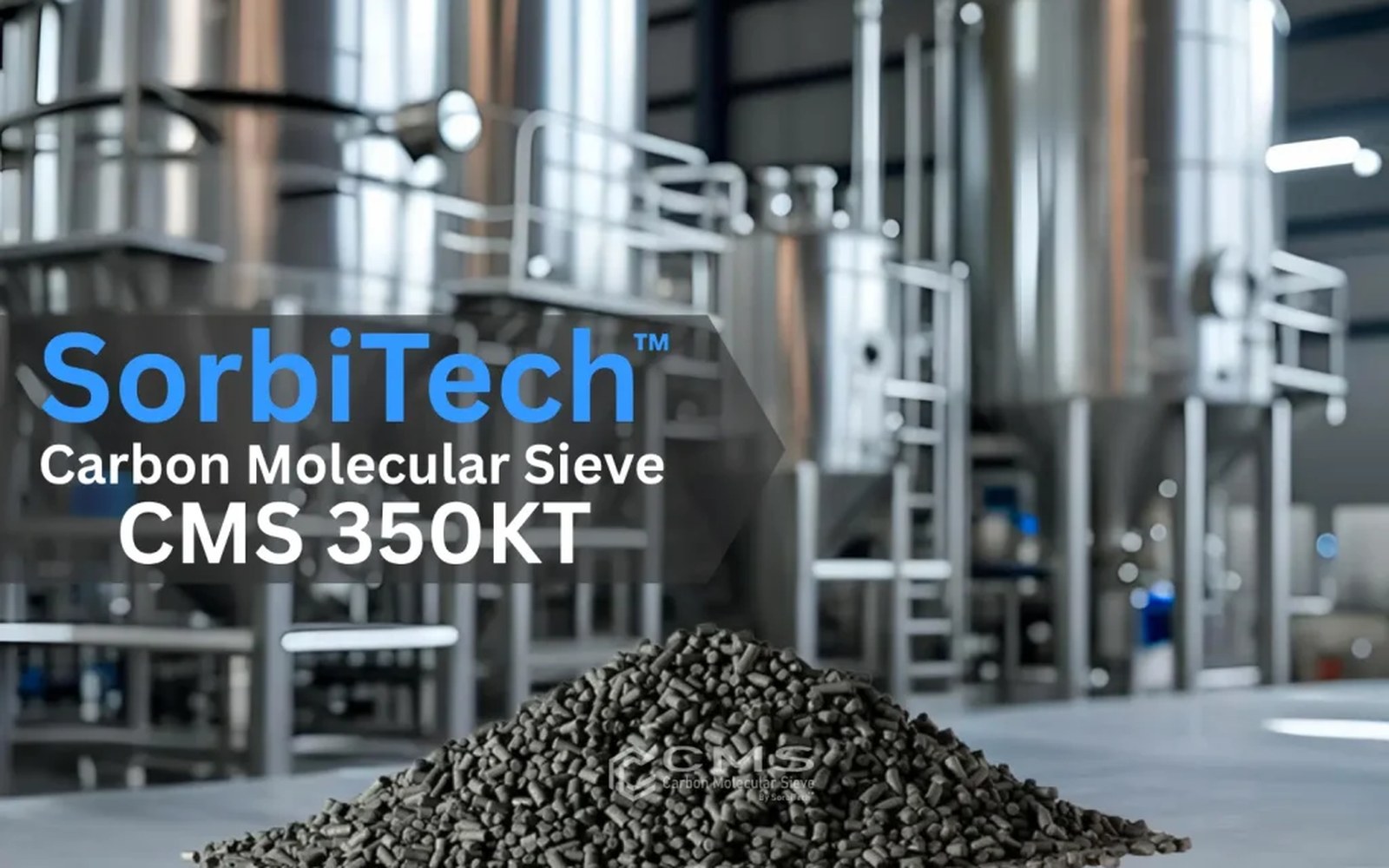

Carbon molecular sieve CMS 350KT rapid adsorption pellets for industrial PSA up to 99.99 percent N2

Rapid Adsorption Kinetics

CMS 350KT is a carbon molecular sieve with the pore mouth controlled narrower than 10 Angstrom for rapid oxygen capture during the pressurisation stroke. Oxygen at 3.46 Angstrom enters the pellet at several times the rate of nitrogen at 3.64 Angstrom, supporting a 40 to 90 second cycle at 7 to 10 barg adsorption pressure.

The rapid pressurisation and depressurisation profile reduces the air consumed per cubic metre of nitrogen produced. BET surface holds approximately 1100 m2/g, bulk density 0.60 to 0.66, moisture at supply below 1.0 percent.

Industrial Duty Coverage to 99.99 Percent

  • Oil and gas pipeline purging, pressure testing, pre commissioning
  • Petrochemical reactor blanketing and downstream tank inerting
  • Chemical process blanketing across batch and continuous duty
  • Food and beverage packaging and bottle headspace inerting
  • Pharmaceutical processing at the standard high purity range
  • Metal heat treatment, welding shielding, bright annealing

Cycle Window

  • Cycle time 40 to 90 seconds
  • Adsorption pressure 7 to 10 barg
  • Operating temperature 5 to 50 deg C
  • Feed air ISO 8573 class 1.4.1 or better
  • Moisture at supply below 1.0 percent
  • Pellet size 1.0 to 2.2 mm, selected to PSA package geometry

SorbiTech engineering supplies cycle validation data with every charge and supports operator commissioning where the original PSA package was tuned to a different grade.

Low Dust Formation in Service

Robust pellet shape resists fragmentation at the bed velocities the rapid cycle imposes. Low dust formation protects the downstream coalescing filter, product line valves, and analytical instrumentation that confirms outlet purity. Pellet integrity is verified per lot against the dynamic cycle test.

Forms and Supply

Supplied as 1.0 to 2.2 mm cylindrical pellets in 25 kg drums or 500 kg big bags. Cycle validation data and PSA retrofit guidance from SorbiTech engineering on request. For bulk supply, visit carbonmolecularsieve.com/cms-350kt. SorbiTech delivers CMS 350KT across the on site nitrogen application, the industrial gas sector, and the parent carbon molecular sieve family.

Available as

Standard supply for industrial PSA packages, cycle validation data on request.
