LNG Pre Treatment
Gas Treatment & Drying

LNG Pre Treatment

Removing water, carbon dioxide, mercury, and trace contaminants from natural gas feed to LNG liquefaction trains using 13X molecular sieve and impregnated guard beds.

Find My Solution View Products & Systems
The Challenge
LNG plants operate at minus 162 °C in the main cryogenic exchanger; trace water and carbon dioxide freeze on the exchanger and force a costly defrost campaign, while trace mercury attacks the brazed aluminium and writes off the heat exchanger.
Quick Answer

LNG pre treatment removes the contaminants that would freeze, plug, or attack the cryogenic LNG train: water below 0.1 ppmv, carbon dioxide below 50 ppmv, mercury below 10 ng/Nm³. The duty uses 13X molecular sieve in a TSA cycle plus a downstream mercury guard bed of sulphur impregnated activated carbon.

LNG Pre Treatment

Cryogenic LNG Requires Ultra Clean Feed Gas

Natural gas liquefies at minus 162 °C in the main cryogenic heat exchanger of an LNG plant. Every part per million of water or carbon dioxide in the feed freezes against the exchanger surface and progressively blocks the gas passages; the operator faces a costly defrost campaign within months unless the pre treatment train delivers below 0.1 ppmv water and below 50 ppmv carbon dioxide reliably across the campaign life. Trace mercury attacks the brazed aluminium plate fin construction and can write off a heat exchanger worth tens of millions of dollars within years.

The SorbiTech LNG pre treatment train combines amine sweetening (where CO₂ is high), molecular sieve dehydration and polishing, and a dedicated mercury guard bed in a single integrated package.

Molecular Sieve TSA on the Front End

After the amine contactor the gas still carries 0.5 to 2 mol percent CO₂ and water at the saturation point. A SorbiTech 13X molecular sieve bed in a twin or triple tower TSA cycle drives the water to below 0.1 ppmv and the CO₂ to below 50 ppmv. The 13X grade is preferred over 4A because the 10 Å pore admits both water and CO₂ in the same bed, eliminating the two stage train.

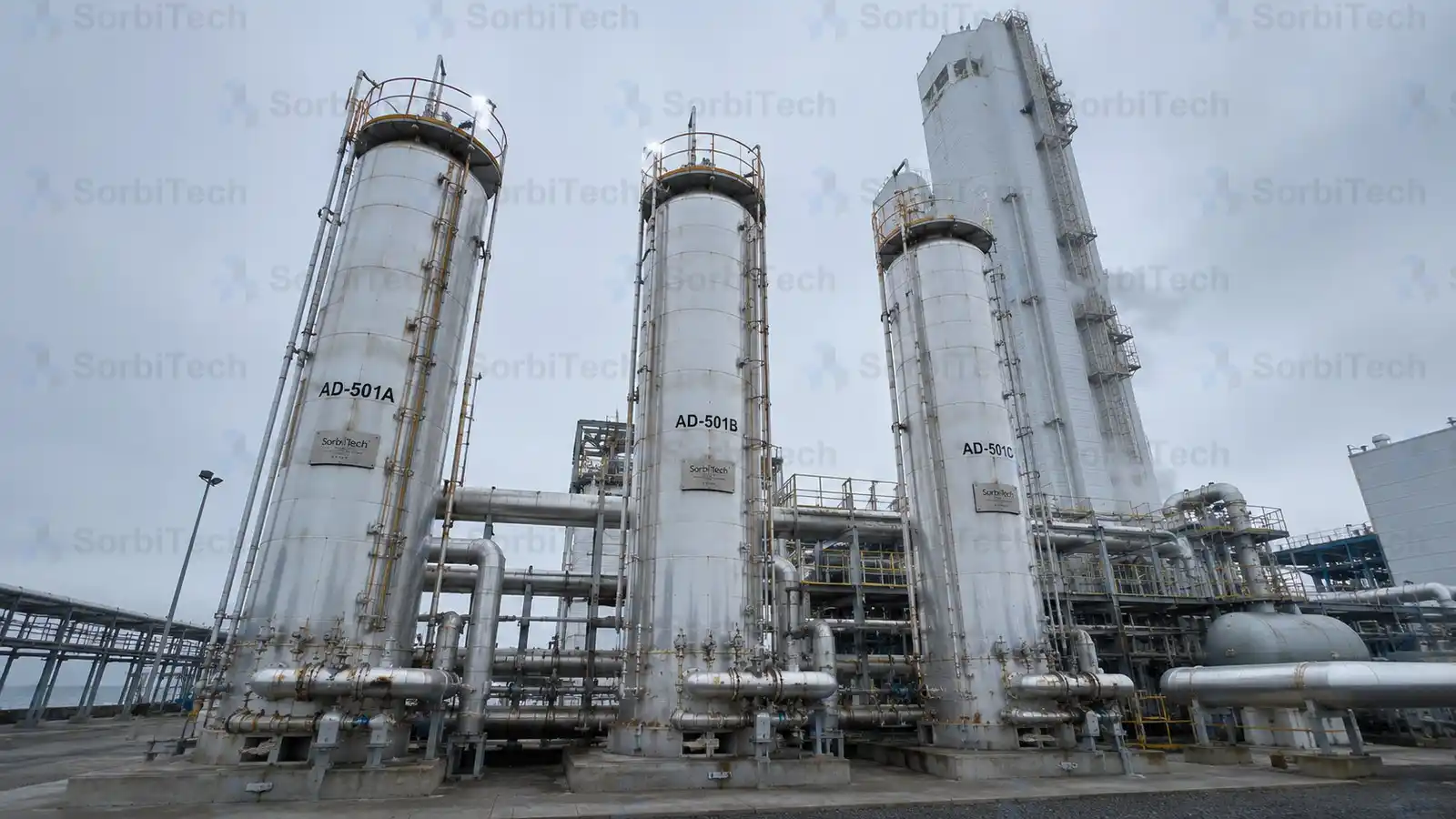

LNG Pre Treatment process equipment

Mercury Guard Bed and Final Polishing

Downstream of the molecular sieve, a mercury guard bed of sulphur impregnated activated carbon captures elemental and ionic mercury as mercury sulphide. The outlet meets the cold box specification of below 10 ng/Nm³ mercury. The bed is single use and sized for the operator turnaround interval, typically 3 to 5 years for sweet gas service.

Delivery and Project Execution

Delivered turnkey by SorbiTech with full integration into the LNG plant licensor process (APCI, ConocoPhillips, Shell DMR, Linde). The SorbiTech media supply chain is locked to the project schedule, and the SorbiTech vessel fabrication runs to the operator approved drawing standard. Sector coverage is oil and gas.

Selection Guidance

Use 13X molecular sieve (combined water plus CO₂ removal) ahead of the cold box, then a sulphur impregnated carbon mercury guard bed. The bed is sized for the contracted campaign length, typically 3 to 5 years between media changeouts.

How SorbiTech Solves It

A Specified, Verified Solution

Define the duty

We capture your process conditions: flow, composition, pressure, temperature, and the target outlet specification.

Select media & configuration

Our engineers recommend the adsorbent grade and system type that meet the duty with margin.

Size & engineer

Bed sizing, vessel design, and cycle parameters are engineered to your case and documented for approval.

Commission & verify

We support loading, start up, and performance verification against the guarantee.
